    Hard Stone Surface Plate Calibration 1000 X 2000 MM Flatness Measuring

    Ask Lasest Price
    Brand Name : Willing
    Model Number : 1000 x 2000 mm
    Price : USD200-300
    Payment Terms : T/T, Western Union
    Supply Ability : 100PC /30days
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

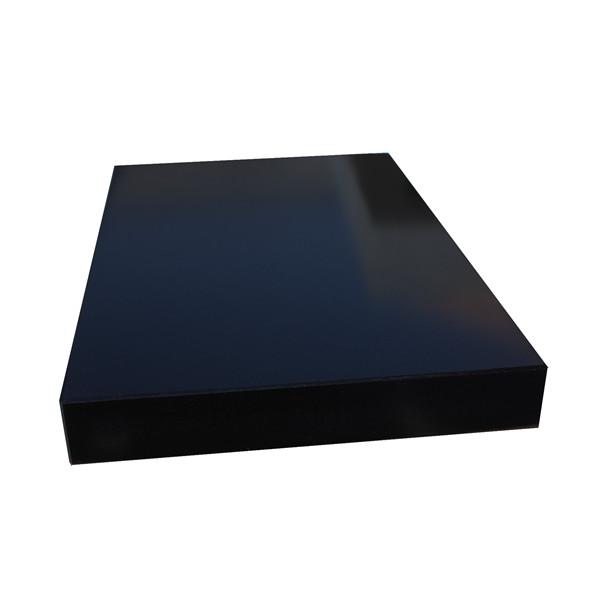

    Hard Stone Surface Plate Calibration 1000 X 2000 MM Flatness Measuring

    High Precision Flatness Measuring Stone Surface Plate Calibration 1000 x 2000 mm

    • Precision Surface Plate using granite gabbro
    • It is very and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
    • In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
    • We can also make special mounts using square pipe.

    Grade


    Measurement (mm)

    Grade 00Grade 0Grade 1BearingMass
    (kg)
    Code No.Flatness
    (μm)
    Code No.Flatness
    (μm)
    Code No.Flatness
    (μm)
    L1×L2
    (mm)
    300×300×75BA1012.0BA2014.0BA3018240×24021
    450×300×100BA1022.0BA2024.5BA3029390×24041
    500×500×100BA1032.5BA2035.0BA30310420×42075
    600×450×100BA1042.5BA2045.0BA30410500×37081
    600×600×125BA1052.5BA2055.0BA30510500×500135
    750×500×125BA1063.0BA2065.5BA30611630×420141
    1000×750×150BA1073.0BA2076.5BA30713700×630338
    1000×1000×150BA1083.5BA2087.0BA30814700×700450
    1500×1000×200BA1094.0BA2098.0BA309161100×700900
    2000×1000×250BA1104.5BA2109.5BA310191500×7001500
    2000×1500×300BA1115.0BA21110.0BA311201500×10002700
    3000×1500×300BA1126.5BA212
