    640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine

    Ask Lasest Price
    Brand Name : CANGZHOU WILLING
    Model Number : steptile
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

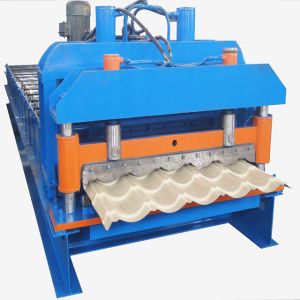

    640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine

    Model 640 Glazed Steptile Roof Tile Roll Forming Machine


    Model 640 Glazed Steptile Roof Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.


    Specification
    No.ItemDescription
    1CoilGalvalume, Galvanized, PPGI, Aluminum
    2Raw Material Thickness0.3mm-0.8mm
    3Working Speed15-20/min
    4Roller Station16 Raws
    5

    Dimension (L*W*H)

    4500 mm*1200 mm*1200 mm
    6Machine Weight3800 KG
    7

    Electrical Control System

    PLC

    8

    Drive Motor Power

    3 KW
    9

    Hydraulic Station Power

    3 KW
    10

    Power Supply

    380V/60HZ/3 PH

    11

    Cutting Accuracy

    ±2 mm

    12

    Driving Mode

    Single Chain 1 inch

    13

    Material of Shaft

    70 mm 45#steel forged

    14Material of Roller

    45# Steel Finish Machining, Plated Hard


    Application


    Such tiles are suitable for daily buildings such as warehouses, special buildings, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.


    Advantage


    Ceramic tiles have anti-corrosion, acid resistance and other functions. It has the advantages of light weight, high strength, beautiful appearance, convenient and quick construction, earthquake resistance, fire resistance, rain and moisture resistance. Long life and other characteristics, so it is widely used in civil and industrial buildings
