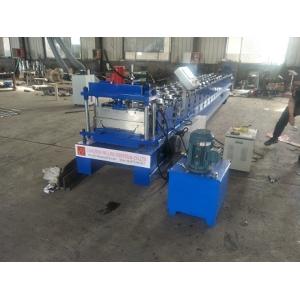

Self Lock Ppgi Standing Seam Roll Forming Machine Automatic Control System

Ask Lasest Price
Brand Name :	CANGZHOU WILLING
Model Number :	Angle Relaxation
Certification :	ISO CE
Price :	Negotiable
Payment Terms :	L/C, T/T, D/A, D/P
Supply Ability :	20 Sets Per Month
Delivery Time :	30 Working Days

Add to Cart

Product Details
Company Profile

Self Lock Ppgi Standing Seam Roll Forming Machine Automatic Control System

Automatic Control System Standing Seam Selflock Roll Forming Machine

Automatic Control System Standing Seam Selflock Roll Forming Machine equipment unit adopts a highly integrated network, which makes the performance of the automation system superior. At the same time, the equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.3 mm - 0.9 mm
3	Working Speed	8-10 m/min
4	Roller Station	20 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	5.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The profiled board produced by the type Automatic Control System Standing Seam Selflock Roll Forming Machine solves the roof leakage problem of the conventional series of profiled boards. The connection of the profiled board breaks the convention of traditional roof bolt connection. The installation method adopts 45-degree lock bite installation, so that The roof effect is more compact.

Advantage

Our company is equipped with a professional design team. With many years of production experience, we can customize corresponding machines for customers according to customer drawings to meet customers' special requirements for plate, thickness and shape.
